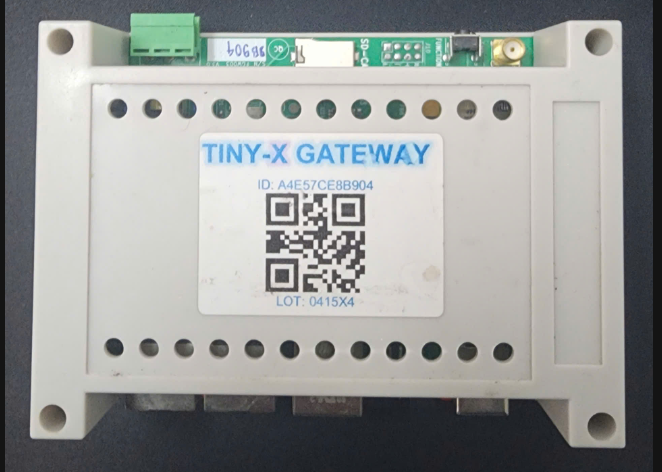

Project 9: Tiny-X Gateway

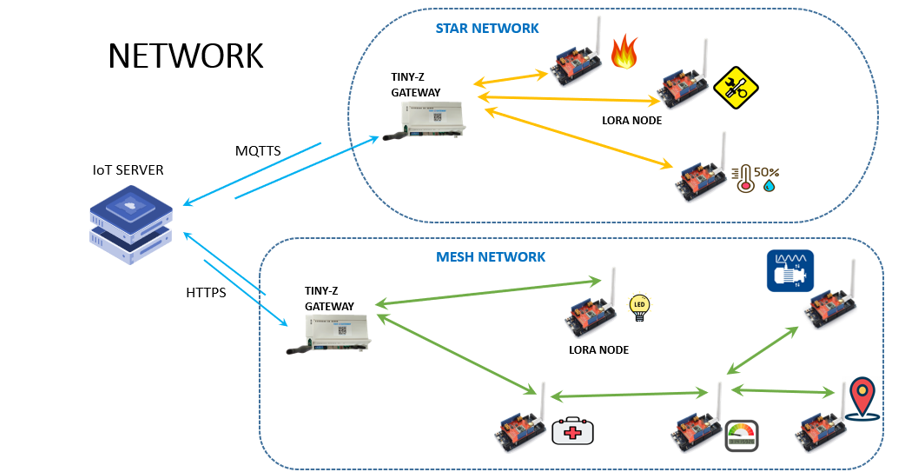

Tiny-X is a simple yet versatile gateway that offers a wide range of connectivity options, making it ideal for small network models with quick integration and customization capabilities. With built-in connectivity options such as dual LoRa channels, RS485, Wi-Fi, Ethernet, and 4G, users can easily configure and test desired features while minimizing unnecessary hardware development time. Tiny-X also supports expansion interfaces such as I2C - Extend IO and I2C - LCD and can function as an IoT Node for rapid development. It allows for easy programming and debugging via the built-in USB port and supports multiple development platforms, including Arduino.

Key Features

• With built-in connectivity options such as dual LoRa channels, RS485, Wi-Fi, Ethernet, and 4G, users can easily configure and test desired features while minimizing unnecessary hardware development time.
• Tiny-X also supports expansion interfaces such as I2C - Extend IO and I2C - LCD and can function as an IoT Node for rapid development. It allows for easy programming and debugging via the built-in USB port and supports multiple development platforms, including Arduino.

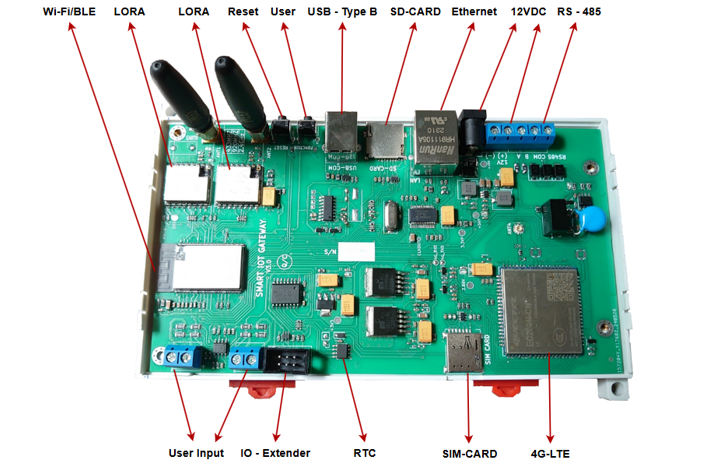

Project Details

Microcontroller: ESP32 Dual Core 240MHz with 16M Flash + 4M RAM

Memory: SD-Card / On-board Flash

Debugging: USB Type B COM port (1Mbps)

LoRa: RA-01H (920MHz) / RA-01L (433MHz)

4G-LTE

Expansion Connectors: I2C-Display, I2C-IO Extender

Ethernet: 10/100, RJ45

High Accuracy RTC: ±5ppm DS3231M with 3V backup battery

RS485: Isolated 1Mbps

Input Supply Voltage: 12V 1A

Gallery
